HSC/60/SUPER (On Pile Pack)

This is a high Speed version to pack Biscuits single & double Pile (Canteen Pack) for higher output with Double Jaw Cutting Mechanism.

HSC/60/SUPER
(On Pile Pack)

This is a high Speed version to pack Biscuits single & double Pile (Canteen Pack) for higher output with Double Jaw Cutting Mechanism.

Home > Our Products > HSC/60/SUPER

Our Products

>> SAI/H/60 (On Edge Pack)

>> SAI/H/60/A/SUPER (On Edge Pack)

>> SAI/HSC/60 (Products in Tray)

>> SAI/HSC/60/SUPER (On Pile Pack)

>> SAI/H/FP/30 (Family Pack)

>> SAI/HFW/MICRA

Overview

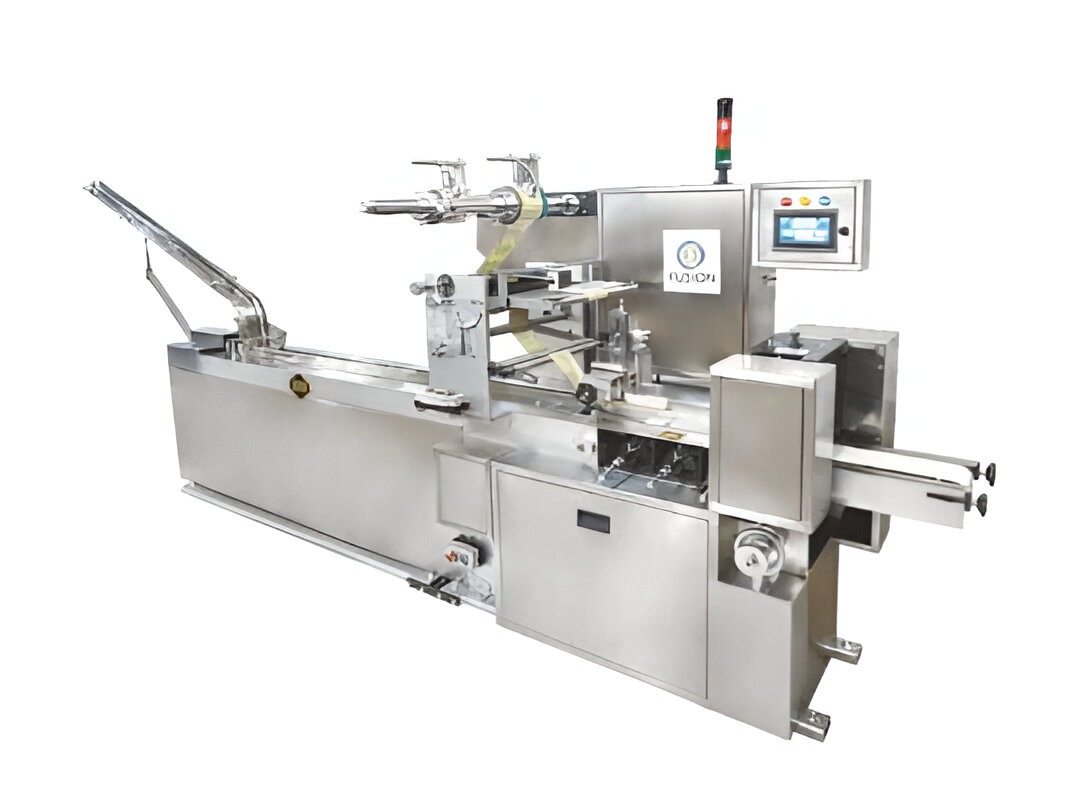

This is a high Speed version to pack Biscuits single & double Pile (Canteen Pack) for higher output with Double Jaw Cutting Mechanism. The Machine is also available with optional automatic chute (hopper) feeding attachment for packing Round, Square & Rectangular Biscuits on Single or Double Pile. Maximum out put of the machine is 150 to 400 pkts/minute depending on the Product Size, Shape, Operator Skill, Film Quality & Thickness etc.

MODEL : FUSION (NEW TECHNOLOGY):

Above machine model can be advanced with incorporating this New Fusion Technology of PLC/Touch Screen/Servo Motor to achieve higher production output and also are easy to operate and maintain with low maintenance cost. Machine speed 150 to 400 pkt/minute for Single pile and 150 to 200 pkt/minute for double pile, Depending upon type of biscuit, No. of Biscuit on pile, Film quality, etc.


Technical Details

SR.NO. DESCRIPTION MODEL HSC/60
1 Maximum Product Size 60 mm Dia
2 Minimum Product Size 10 mm Dia
3 Maximum Width of Product 80 mm
4 Minimum Width of Product 20 mm
5 Maximum Stack Length 160 mm
6 Minimum Stack Length 40 mm
7 Maximum Speed( Depending upon type, product size, stack length ) MODEL : HSC/60
150 Packets per min.
MODEL : HSC/60/SUPER
Speed 300 Packets per min.
( Depending upon no.of pile & biscuits on pile )

Electrical Data

MODEL HSC/60
1) Power = 440 Volts 3 Phase
2) Power = 440 Volts 3 Phase
Optional :
Touchscreen / Servo Motor / PLC can be incorporated in all machine.
1.0 H.P. Motiv
1.5 K.W.Heating

Wrapping Material

Heat sealable material such as 30 to 40 micron polyester poly/pearlised/metallised B.O.P.P. Heat sealable B.O.P.P. & Aluminium foil, paper poly and other common composite films with inner heat sealable layer.

SR.NO. DESCRIPTION MODEL HSC/60
1 Maximum Width of Packing Material 300 mm Dia
2 Minimum Width of Packing Material 100 mm
3 Maximum Reel Diam 300 mm
4 Reel Core Diam 75 mm

Specification

  MODEL HSC/60
1) MACHINE WEIGHT (APPROX) NETKG.750GROSSK.G1050
2) MACHINE DIMENSION (APPROX) L3800 mm/ 150 inchW1100 mm/ 45 inchH1500 mm/ 60 inch
